100L Stainless Steel Vacuum Emulsifier Mixer Fixed Cover Emulsifier for Cream
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | LIANHE |
| Certificering: | CE , ISO , SGS , TUV |
| Modelnummer: | Links-VME 100 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | Contact Us |
| Verpakking Details: | Normaal verpakt in houten geval of verpakkende film, kan ook worden aangepast |
| Levertijd: | 30 werkdagen |
| Betalingscondities: | T/T, L/C, D/A, Contant geld |
| Levering vermogen: | 20 reeks/Reeksen per Maand |
|
Gedetailleerde informatie |
|||
| Capaciteit: | 5L - aangepast 5000L (zoals nodig) | Hoofddelen: | Motor, PLC, Verzegelende Ring, Homogenisator |
|---|---|---|---|
| Verwarmingsmethode: | Het elektrische/Stoom verwarmen voor facultatief | Bewegende snelheid: | 0-65 t/min |
| Het homogeniseren Snelheid: | 0-3600 t/min | Toepassing: | Kosmetische room, lotion, douchegel |
Productomschrijving

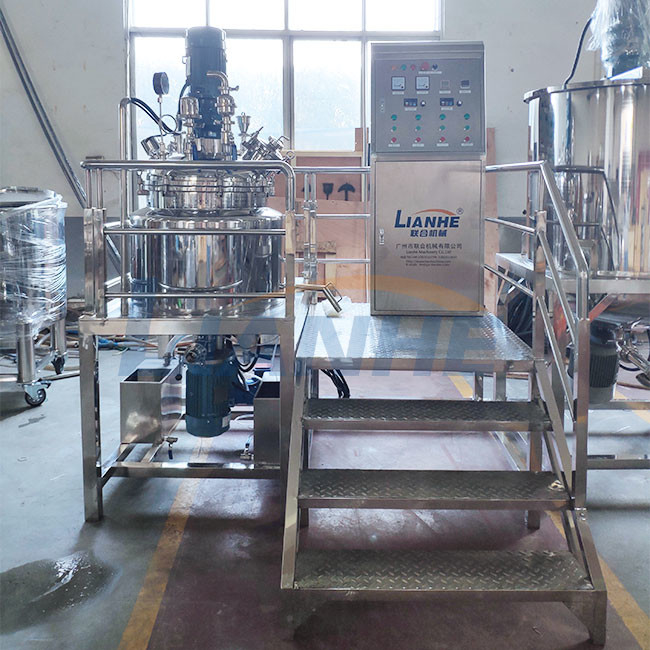

100L Stainless Steel Vacuum Emulsifyier Mixer Fixed Cover Emulsifier Machine
Product Description:
This fixed cover type vacuum emulsifier mixer is suitable for cosmetic production, comparing with hydraulic lifting type vacuum mixer, this type design saves more space, and its price is more economic for new-begin factory. It contains with such functions as mixing, heating/cooling, emulsifying, vacuum to eliminate product bubbles, etc.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Product Features
1. The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard.

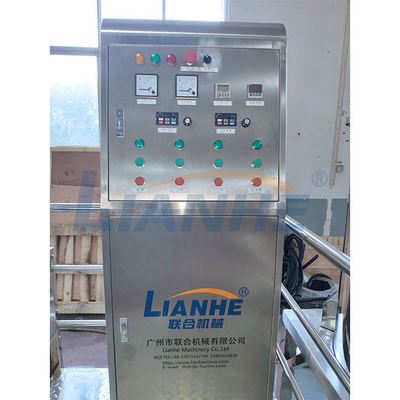

2. All pipelines and parameter are controlled automatically if needed. Electronics are imported from foreign country, like Siemens ,Schneider, ABB etc.
3. Emulsifying tank is with CIP cleaning system, it makes the cleaning easier and more effective.

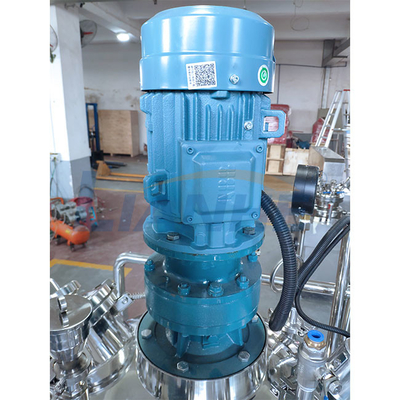

4. Bottom homogenizer: variable frequency speed regulation 0-3600 r/min, only use ABB motor, stable operation and long service life, flat bottom valve discharging, can also manually.
5. Vacuum function to eliminate product bubbles, so that final product looks more exquisite and smooth.
Main Feactures:

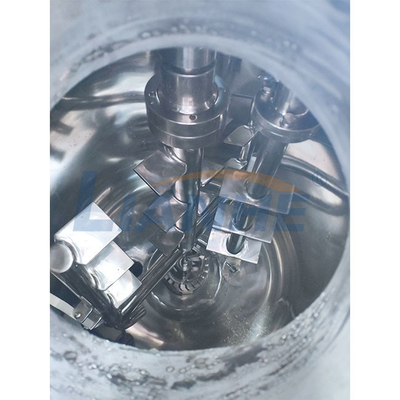

1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 3600 r/min
Product Application:
1. Cosmetic Industry: face cream, hand cream, eye serum, body lotion, gel
2. Pharmaceutical Industry: ointments, oral syrup, latex, emulsions
3. Food Industry: Mayonnaise, dressing, salad, jam, butter, margarine, cheese
4. Chemical Industry: synthetic fibers and polyesters, latex, saponification products, sauce, detergents, coatings, etc.
5. Paint Industry
