25L Small Scale High-End Vacuum Emulsifying Mixer European Standard
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | LIANHE |
| Certificering: | CE , ISO , SGS , TUV |
| Modelnummer: | Links-VME 25 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | Contact Us |
| Verpakking Details: | Normaal verpakt in houten geval of verpakkende film, kan ook worden aangepast |
| Levertijd: | 30 werkdagen |
| Betalingscondities: | T/T, L/C, D/A |
| Levering vermogen: | 20 reeks/Reeksen per Maand |
|
Gedetailleerde informatie |
|||
| capaciteit: | 5000L (kan worden aangepast) | Motormerk: | Siemens of slechts ABB |
|---|---|---|---|
| Materiële Contactdelen: | SUS316L, SUS304 | Functie: | Emulsie, het homogeniseren, het mengen zich, het verwarmen, vacuüm |
| Voltage: | 220V/380V (kan worden aangepast) | Zeer belangrijke Verkopende Punten: | Lage Onderhoudskosten |
Productomschrijving

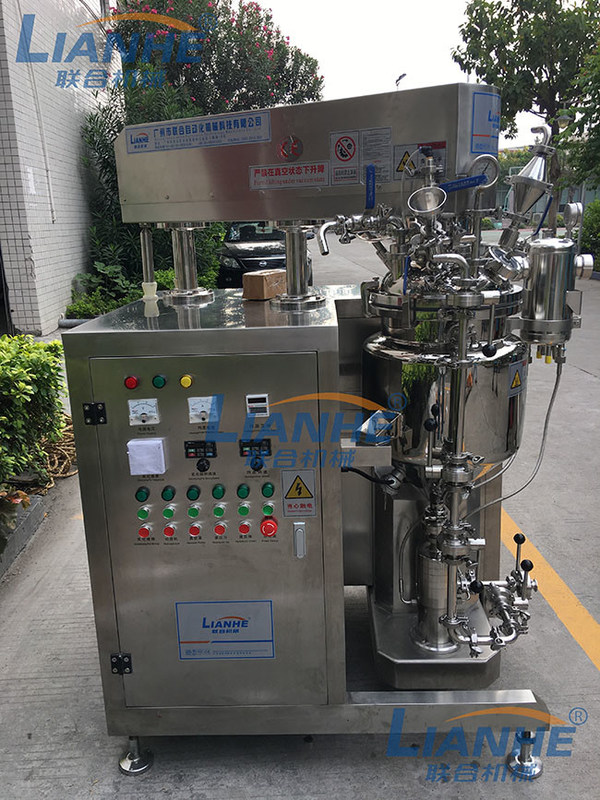

25L Small Scale High-End Vacuum Emulsifying Mixer European Standard
Product Description:
The 25L hydraulic lifting type vacuum emulsifying mixer has a homogeneous design of internal and external circulation, make sure the finished product emulsification effect is better. The German Aika technology is adopted, which is favored by European countries.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Working Principle:
The vacuum emulsifying mixer features a single-blade mixer for mixing high dense ingredients and an emulsifier homogenizer for high-speed mixing. The blade mixer has scrapers to clean the mixing bowl’s inside and generates a downward mixing course to keep the homogenizer running at full capacity. The Vacuum Emulsifying Mixer’s homogenizer head comprises a rotor and a stator that spins at high speeds. The fast-spinning speed of the stator and rotor creates a pressure contrast within the homo-head. Moreover, the homo-head shears, breaks, mixes, and emulsifies raw materials. The emulsifying process involves emulsified material gushing forth homo-head by the blade mixer.
The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.
If customers have any doubt on the machine, or if you are not sure whether this machine is suitable for your products or not, please send us inquiry and we will get back to you very soon.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
