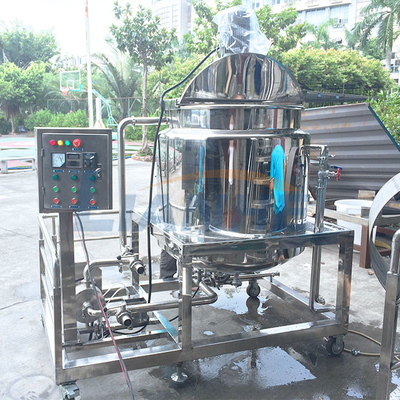

500L Homogenizer Emulsifier Mixer with High Shear Emulsification Pump
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | LIANHE |
| Certificering: | CE , ISO , SGS , TUV |
| Modelnummer: | Links-PMC500 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | Negotiable |
| Verpakking Details: | Normaal verpakt in houten geval of verpakkende film, kan ook worden aangepast |
| Levertijd: | 20-30 werkdagen |
| Betalingscondities: | T/T, L/C |
| Levering vermogen: | 20 reeks/Reeksen per Maand |
|
Gedetailleerde informatie |
|||
| Capaciteit: | (Aangepaste) 50-6000L | Voeding: | (Aangepast) 220V/380V/400V |
|---|---|---|---|
| Materiaal: | SUS304/SUS316 (Materieel Contactdeel) | Motormerk: | Siemens of slechts ABB |
| Toepasselijke Industrie: | Schoonheidsmiddel, Geneesmiddel, Voedsel | Verwarmingsmethode: | stoom of het elektrische verwarmen |
Productomschrijving

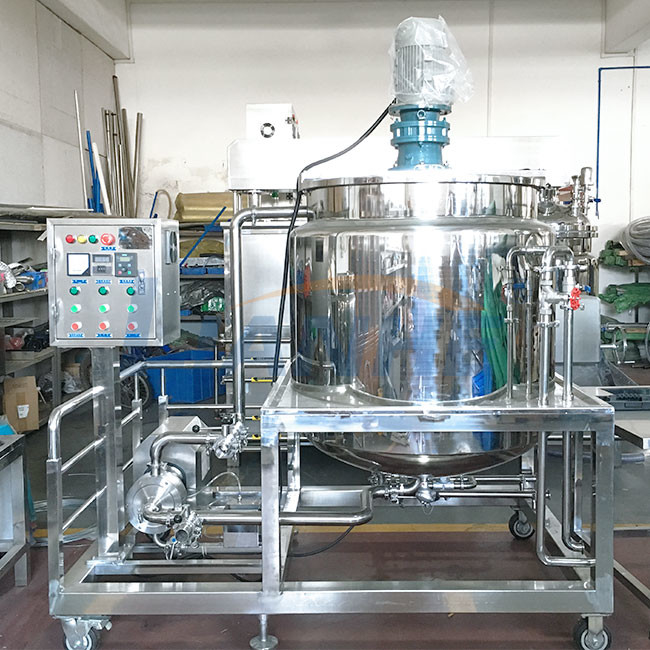

500L Electric Heating Homogenizer Emulsifier Mixer Liquid Soap Making Machine
Product Description:
This liquid mixer machine is mainly suitable for manufacturing liquid products. It combines the functions of mixing, dispersing, heating and cooling, etc. We can customize corresponding equipment for customers from different industries to improve their production quality. It is applicable for various industries, such as pharmaceuticals, chemical, cosmetic, daily care and food industry, etc.
Dear all, thank you for visiting our web. Hope you can find what you need here. For a more efficient communication, please refer to the following question when sending the inquiry:
- What is your product? (liquid soap, or shampoo or ?)
- What is the capacity you need?
- Is your product highly corrosive?
- Does the product needs heating when mixing?
Product parameters:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 |
recommend steam heating |
|
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speedup dissolution and emulsification of materials.
6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc.
1. The top mixing motor is high quality. It controls the mixing paddle to mix the product evenly. The mixing speed can be adjusted from 0 to 65 rpm.
2. The mixing paddles is made with frame shape. It can mix the product completely. The paddle shape can be customized according to the requirement of the customers based on different products. With polish inside of the tank, all of the paddle and tank inside are made from 316L, which meets the GPM standard.

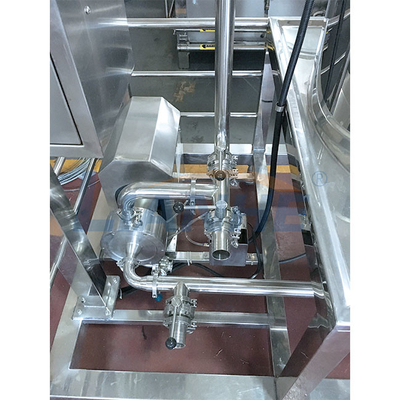

3. The bottom homogenizing motor is high quality. The homogenizer has the function of high shearing. The side hole connect with outer circulation pipe, control by ball valve. And the homogenizer on the bottom of the pot can high shear the material into small molecule, which makes the product to be more delicate.

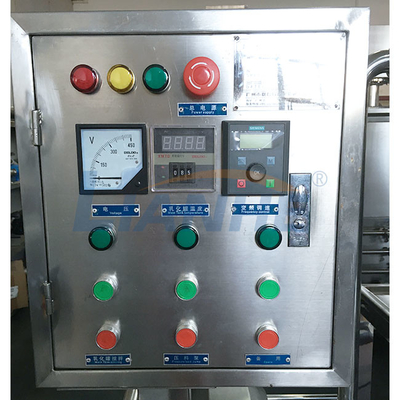

4. The control panel is make with button control, which is easy to operate. The staffs with normal training can control the machine. It can also be customized into touch screen control panel according to your need.
